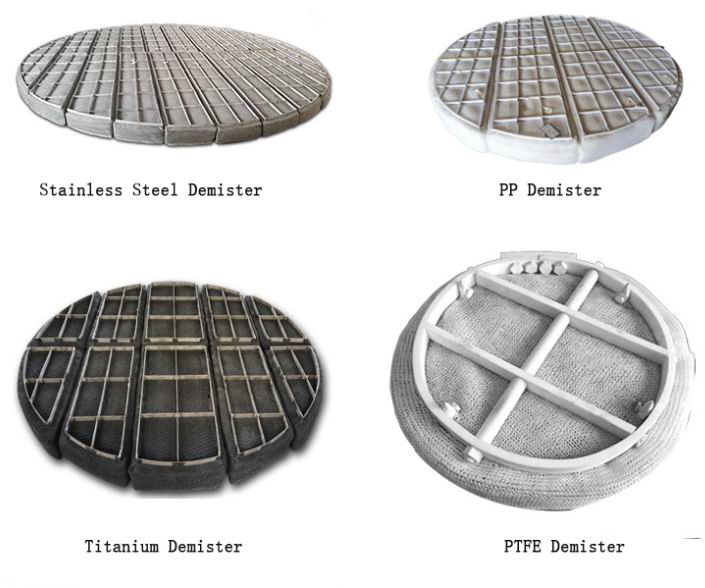

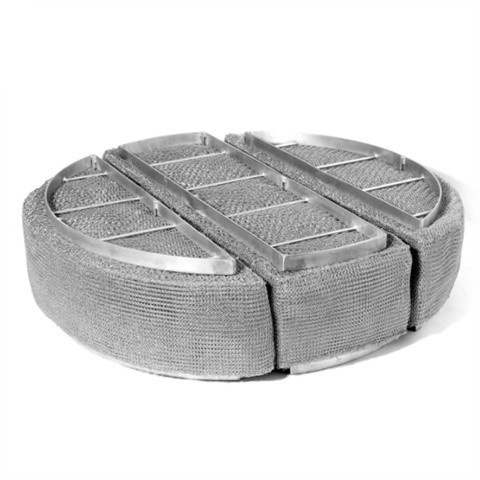

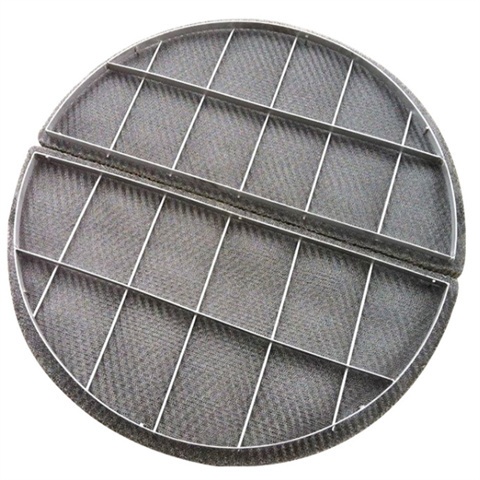

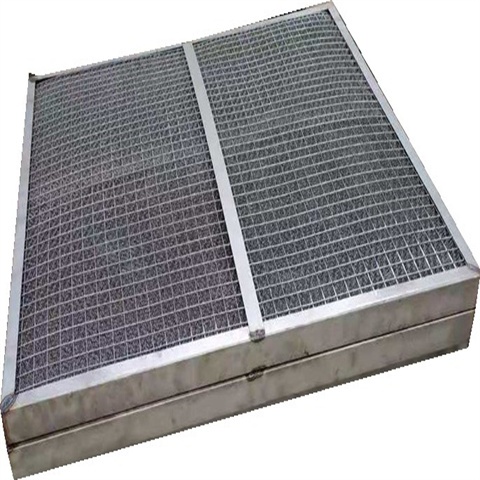

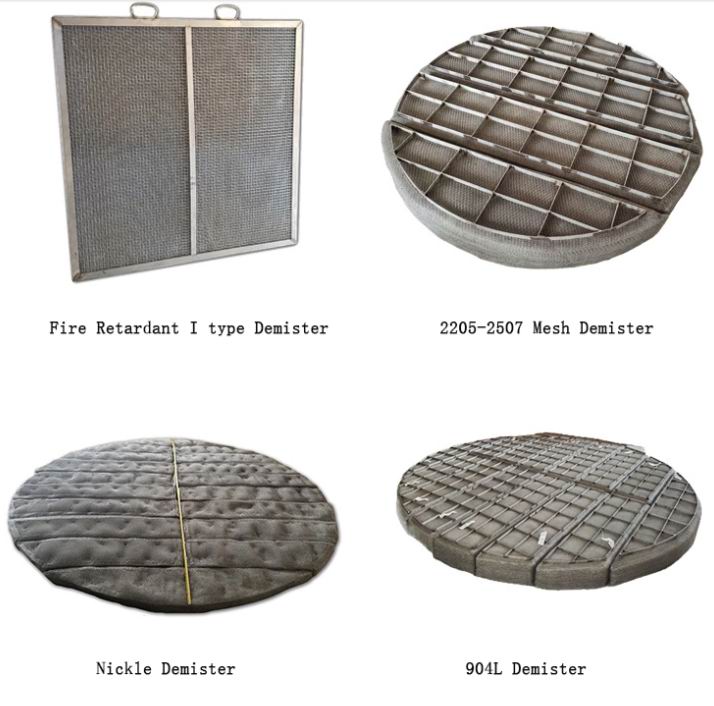

Wire Mesh Demister
- Product No.:20231016133440
· Wire diameter: 0.2 mm, 0.22 mm, 0.23 mm, 0.25 mm, 0.28 mm, 0.3 mm, 0.35 mm.
· Mesh size: 2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.
· Height or thickness: 100 mm to 150 mm.

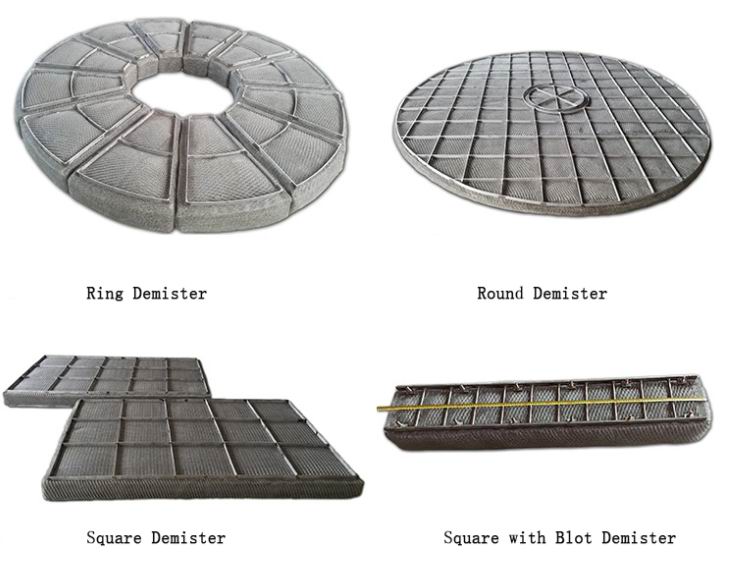

· Pad diameter: 300 mm - 6000 mm.
DENSITY(kg/m3) | FREE AREA(%) | SURFACE AREA(m2/m3) | EQ.STYLE | ||||||
SUS | P.P | SUS | P.P | SUS | P.P | YORK | NIHON MESH | GOTO SHOJI | |
DSM-80 | 80 | 30 | 98.9 | 96.7 | 155 | 495 | 931 | H | H155 |
DSM-120 | 120 | - | 98.5 | - | 210 | - | 631 | L | |
DSM-128 | 128 | - | 98.4 | - | 460 | - | 326 | SN | |
DSM-144 | 144 | 38 | 98.2 | 95.8 | 275 | 630 | 431 | N | S275 |
DSM-193 | 193 | 42 | 97.6 | 95.4 | 378 | 690 | 421 | SL | S370 |
DSM-300 | 300 | - | 96.2 | - | 575 | - | - | SM | |
DSM-390 | 390 | - | 95 | - | 740 | - | - | SH | S740 |
DSM-220 | 220 | - | 97.2 | - | 905 | - | - | T | M905 |
DSM-432 | 432 | - | 94.5 | - | 1,780 | - | 800 | R | M1740 |
DSM-GRASS | 160 | 80 | 96.7 | 94.7 | 5 | - | G.S/G.P |
Style |
Applications |
DSM-80 |
Provides low pressure drop at high velocity and general collection efficiency. Used for collecting lager particles. |
DSM-144 |
Mainly used in the field of petrochemical plants. Provides relatively low pressure drop and collection efficiency |
DSM-193 |
Most commonly used. Provides collection efficiency of up to 98~99% on 5~10 microns at velocity of 1~5m/sec. |
DSM-390 |
Provides high pressure drop at low velocity of 1m/sec and collecion efficiency of up to 90% or greater. |
DSM-220 |
Used for collecting minute particles sized for 1 micron, Thicker is better in case of minute particles with low density (approximately 10g/m3) |
DSM-432 |
Used for collecting sub-micron particles 0.05~1 micronc More effective than DS-220 Style. |
